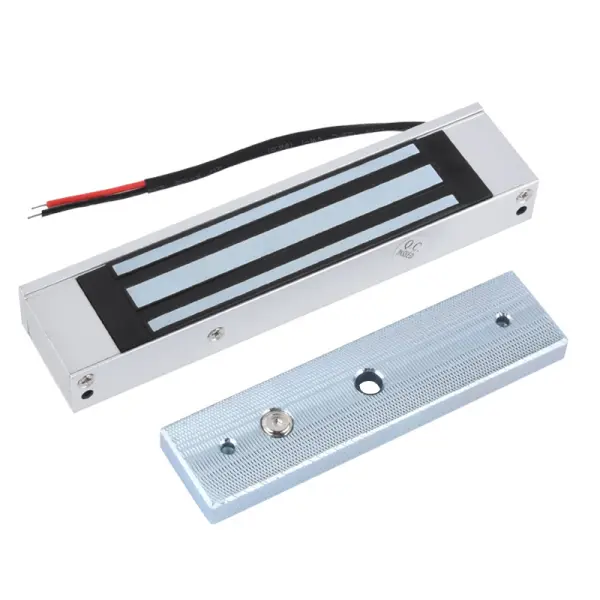

180kg Force Magnetic Lock
With Signal Output (need to customized)
Voltage: DC12V or DC24V
Holding Force: 180KG(350Lbs)
Lock Size: 170Lx41Wx21H(mm)
Current Draw: 12V/300mA 24V/150mA
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
|
Lock Size
|
170Lx41.5Wx20.5H(mm)
|
|
Armature plate
|
130Lx33Wx9.3H(mm)
|
|
Holding Force
|
180KG(350Lbs)
|
|
Voltage
|
DC12V or DC24V (24V need to customize)
|
|
Current Draw
|
12V/280mA 24V/150mA
|
|
Suitable for
|
Wooden door, Glassdoor, Metal door, Fireproof door
|
|
Surface Temp
|
≤20°C
|
|
Operating Temp
|
-10℃ ~ 55℃ (14°F~131°F)
|
|
Suitable Humidity
|
0~90%(non-condensing)
|
|
Finishes for Shell
|
Anodized aluminum surface texture processing
|
|
Finishes for Magnetic
|
Zinc
|
|
Finishes for Armature
|
Zinc
|
|
Weight
|
1.2kg
|
|
Standard Packing
|
20pcs
|
